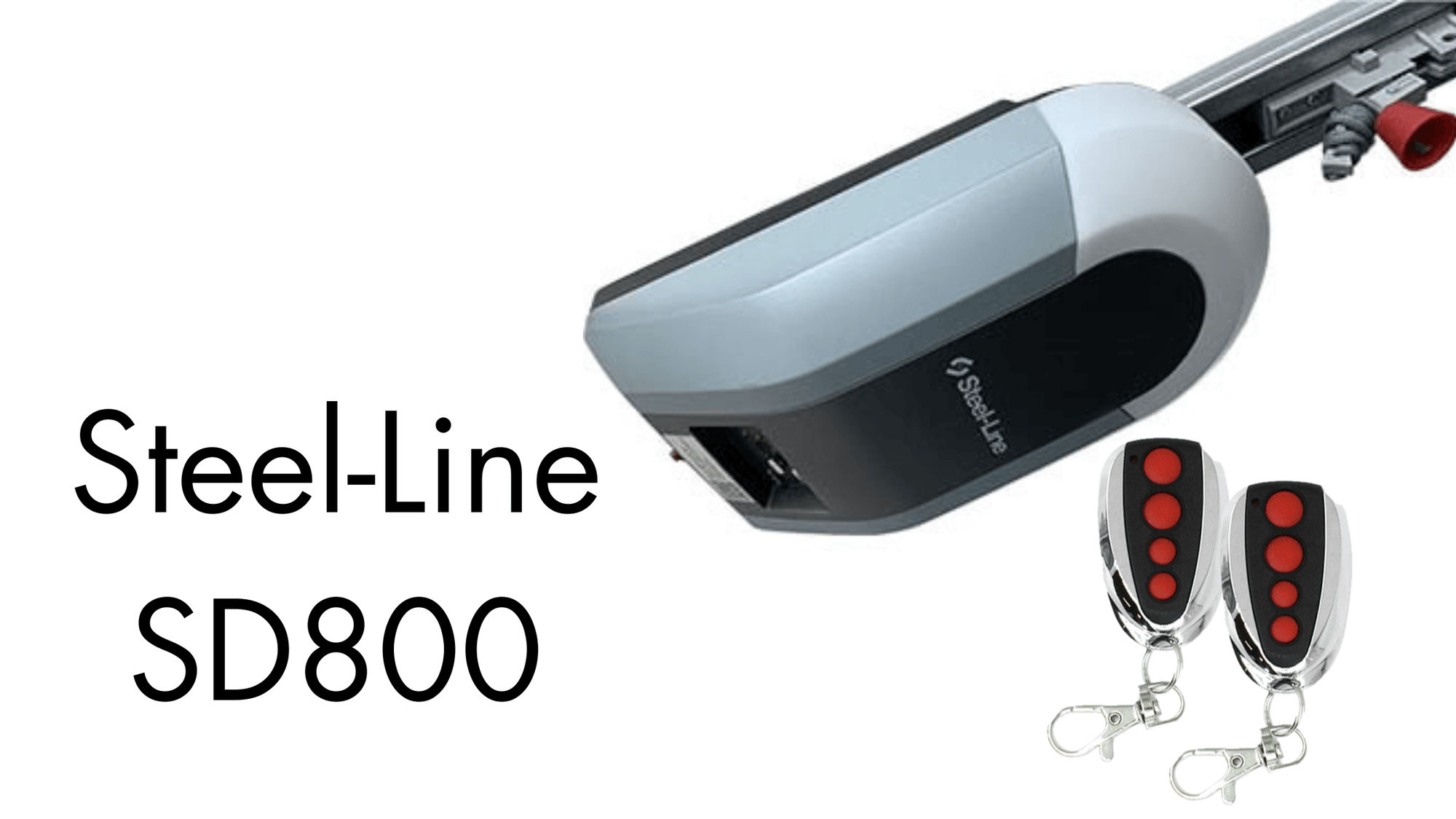

Steel-line SD 800 Sectional Motor

| Write a review
☑ Delivery Available

Yes, this item is available for delivery.

Metro: Arrives in 2 - 5 business days after dispatch.
Regional: Arrives in 3 - 10 business days after dispatch.

Please Note: Due to public holidays, deliveries may take additional time from estimates displayed above.

Time frames shown are subject to change, cut-off times are based off of AEST.

  • Steel-line SD 800 Sectional Motor



    FOR PICKUP ONLY



    Specifications

    • 24V DC motor
    • Electrical Input: 240V
    • Rated Door area up to 12m²
    • Max door weight up to 110kg
    • Max peak pulling force: 800N
    • One piece C-rail with belt drive
    • 433.92MHz transmitter frequency with rolling code technology
    • LED courtesy light
    • Headroom required: minimum door headroom + 50mm

      Door Details
      • Suitable for residential spring balanced sectional doors
      • Max door height: 2.5m
      • Max door width: varies based on height (max 12m²)

      Door Opening and Closing Times

      INCLUSIONS

      • Power Head
      • Belt Rail
      • 2x Four Button Key Ring Mini-Transmitters
      • Wireless Wall Button
