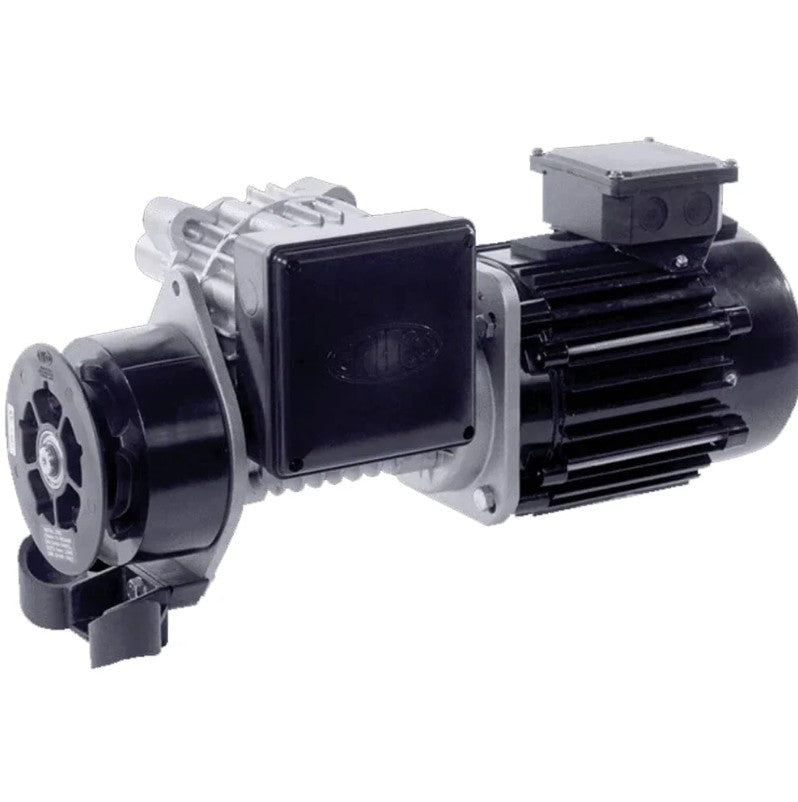

Grifco ML103M mDrive Operator Low Cycle for Roller Shutters - Right | 3 Phase | 1Hp

| Write a review

Sold Out $1,550.00

☑ Delivery Available

Yes, this item is available for delivery.

Metro: Arrives in 2 - 5 business days after dispatch.
Regional: Arrives in 3 - 10 business days after dispatch.

Please Note: Due to public holidays, deliveries may take additional time from estimates displayed above.

Time frames shown are subject to change, cut-off times are based off of AEST.

• Description

• Grifco ML103M mDrive Operator Low Cycle for Roller Shutters - Right | 3 Phase | 1Hp



  FOR PICK UP ONLY



  What’s in the Box?

  It includes mDrive Operator Only. All wall controls and mounting hardware available separately.

  Information for Roller Shutters

  All operators have a recommended maximum Roller Shutter area listed in the specification table. All recommended sizes are based on a “Standard Roller Shutter” (refer below):

  • The Shutter is correctly spring balanced
  • The Shutter has max 1.0mm x min 100mm slats, with a Diameter 150mm drum for shutters max 36m², or Diameter 200mm drum for shutters 36 - 50m²
  • The Shutter has no wind-locks
  • A sprocket ratio ≥ 4:1 is used

  Specifications

  kW	0.75kW	Phase	3Ph
  Amps	2.30A	Max SB Door Size	36m2
  Hp	1.0Hp	IP Rating	IP44
  Voltage	415V	Duty Cycle	LC

  • LC = Low cycle (10% run time / hour).

  • HC = High cycle (30% run time / hour).

  • When specifying an upgraded model, please use the appropriate abbreviation before the “L” or “R” handing. For example ML102MWR.
