Grifco Light Curtain Protector System - Exc Bracket (113 504)

| Write a review

Sold Out $1,555.00

☑ Delivery Available

Yes, this item is available for delivery.

Metro: Arrives in 2 - 5 business days after dispatch.
Regional: Arrives in 3 - 10 business days after dispatch.

Please Note: Due to public holidays, deliveries may take additional time from estimates displayed above.

Time frames shown are subject to change, cut-off times are based off of AEST.

• Description

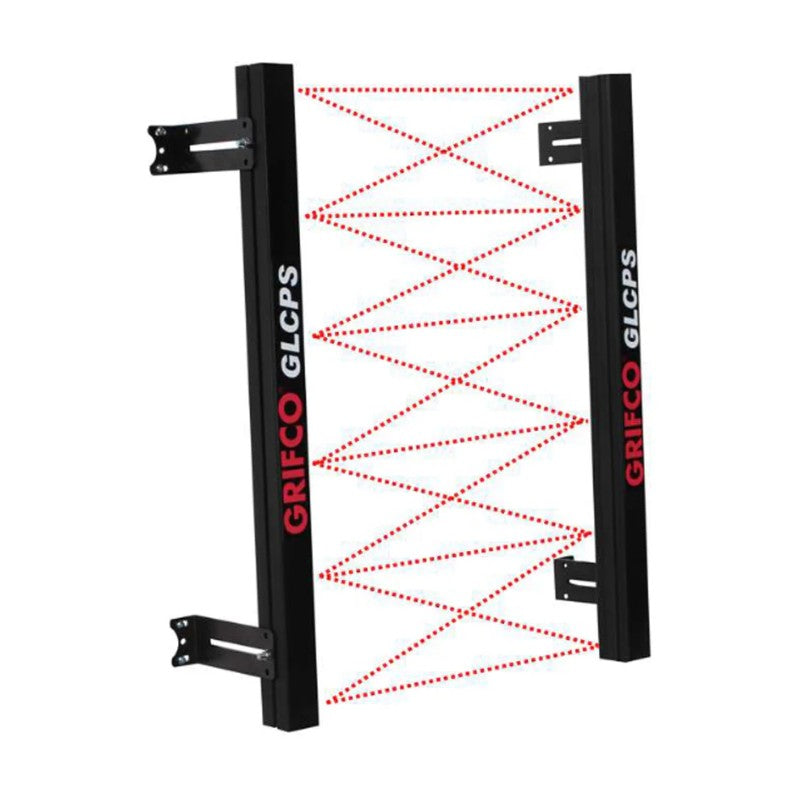

• Grifco Light Curtain Protector System - Exc Bracket (113 504)



  Includes:

  • 2 x Housed Light Curtain rails
  • 1 x Connecting cable
  • 1 x Synchronisation cable (10m)
  • 1 x Interface module
  • 6 x Mounting Brackets and fasteners

  Product Specification:

  • Max. Operating Range: 1 - 10m
  • Max. Ambient Light: 100 000 Lux
  • Aperture Angle at 3m: Tx: ≤ ± 10° and Rx: ≤ ± 20°
  • Supply Voltage USP: 10 - 30VDC
  • Current Consumption at 24VDC: 100mA
  • Output: PNP/NPN (push-pull) or FSS
  • Output load: 100mA, 100nF
  • Typ. Res. Time with 32 Elements: 90ms
  • Max. Door Speed: 2.5m/s
  • Status LED RX: Object Detected (Red) / No Object Detected (Green)
  • Status LED TX: Power OK (Green)
  • Cross Section: 12 mm x 16 mm
  • Max. Protection Height: 2,500 mm
  • Housing Material: Natural anodized aluminium
  • Enclosure Rating: IP67
  • Temperature Range: -40°c - +60°c
