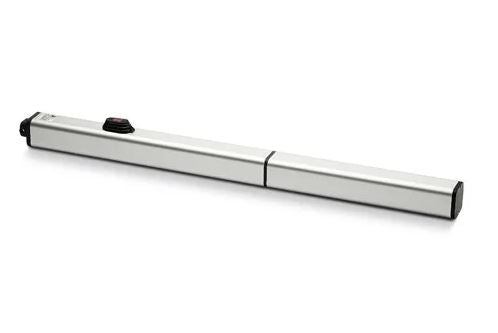

BFT P7 UL Swing Gate Opener 230V (Control Board Not Included)

| Write a review

Sold Out $1,605.00

☑ Delivery Available

Yes, this item is available for delivery.

Metro: Arrives in 2 - 5 business days after dispatch.
Regional: Arrives in 3 - 10 business days after dispatch.

Please Note: Due to public holidays, deliveries may take additional time from estimates displayed above.

Time frames shown are subject to change, cut-off times are based off of AEST.

• Description

• BFT P7 UL Swing Gate Opener 230V (Control Board Not Included)





  Details

  BFT P7 UL Swing Gate Opener 230V (Control Board Not Included) - P935060 00001

  The BFT P7 UL/CSA is a hydraulic swing gate operator that is UL 325 compliant and capable of handling swing gates up to 1100 pounds and 23 ft long. The P7 features safe crushing prevention through the use of two adjustable bypass valves and an adjustable slowdown when the gate is closing.

  Specifications

  • Control Panel: RIGEL 5 UL/CSA (required, not included)
  • Reversible/Irreversible Operator: Reversible
  • Power Supply: 230v
  • Absorbed Power: 0.33 hp (250 W)
  • Thermal Protection: Integrated
  • Rod Working Stroke: 15.35" (390 mm)
  • Rod Speed: 0.33 ips (8.3 mm/s)
  • Opening Time: 45s
  • Closing Time: 42s + slowdown
  • Slowdown: Hydraulic on closing
  • Impact Reaction: Hydraulic clutch
  • Lock: Electric lock
  • Manual Release: Reversible and release knob
  • Operating Cycle: Intensive use
  • Environmental Conditions: From 14°F (-10°C) to 140°F (+60°C)
  • Degree of Protection: IP55

  Note: This is just the arm and does not include the control board. The control board must be purchased separately.



  SKU	P935060-00001
  Alternate Part Number	2600516
  Input Voltage	220/230/240 AC (60 Hz, 1 Phase), 230 AC (50 Hz, 1 Phase)
  Swing Gate Model	P7
  Operator Type	Actuator Arm
  Max Gate Length	16 ft
  Max Gate Weight	1100 lbs
  Opening or Closing Time	16 seconds
