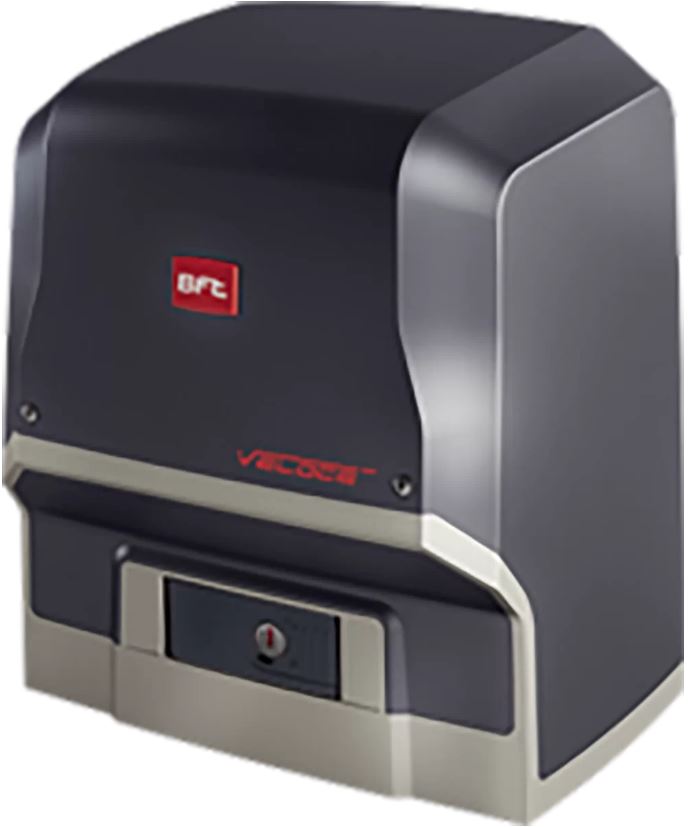

BFT Icaro Veloce Smart AC A1000 Automatic Sliding Gate Opener (230V)

| Write a review

Sold Out $2,263.00

☑ Delivery Available

Yes, this item is available for delivery.

Metro: Arrives in 2 - 5 business days after dispatch.
Regional: Arrives in 3 - 10 business days after dispatch.

Please Note: Due to public holidays, deliveries may take additional time from estimates displayed above.

Time frames shown are subject to change, cut-off times are based off of AEST.

• Description

• BFT Icaro Veloce Smart AC A1000 Automatic Sliding Gate Opener (230V)



  Key Features

  • Fast Operation: Opens at 25 meters per minute to minimize waiting times and improve site access.
  • Smart Torque Management: D-Track technology adjusts torque in real time to adapt to environmental changes and system wear.
  • Oil Bath Gearbox: All gears operate in a continuous oil bath for optimal lubrication and extended life.
  • Integrated Control: Includes LEO B CBB SV control board with U-Link protocol compatibility for remote monitoring and configuration.
  • Enhanced Safety: Features a personalized key release, mechanical clutch, and front-facing screws for easier maintenance.

  Specifications

  • Power Supply: 230 V
  • Max Gate Weight: 1000 kg (2204 lbs)
  • Gate Panel Speed: 25 m/min
  • Power Consumption: 750 W
  • Max Torque: 40 Nm
  • Control Unit: LEO B CBB SV
  • Gearbox Type: Oil Bath
  • Manual Release: Lever with personalized key
  • Locking: Mechanical
  • Slowdown: Yes
  • Pinion Module: 4 mm (25 teeth)
  • Impact Reaction: 8K2 safety edge compatible (not included)
  • Protection Rating: IP24
  • Operating Temperature Range: 5 to 131 Degrees F
  • Frequency of Use: Very intensive
  • Interconnectivity: U-Link compatible



  SKU	P925256-00002
  Alternate Part Number	2601413
  Opening Speed	11.8" per second
  Input Voltage	220/230/240 AC (60 Hz, 1 Phase), 230 AC (50 Hz, 1 Phase)
  Max Gate Weight	4400 lbs
  Max Gate Length	75 ft
  Slide Gate Model	ICARO
