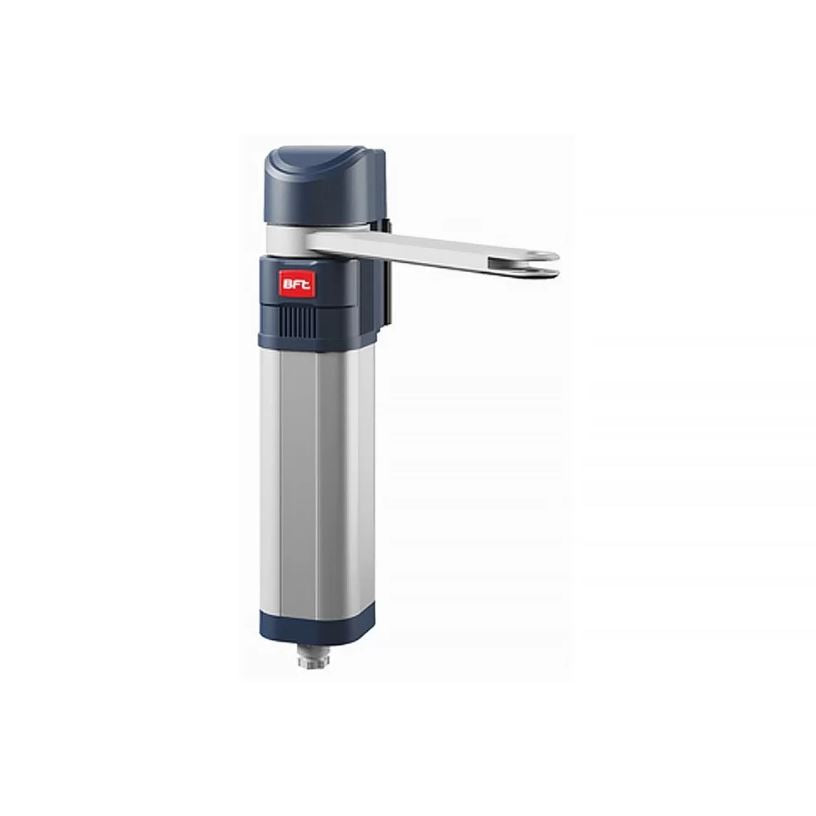

BFT E5 BT A18 Low Voltage Electromechanical Swing Gate Opener

| Write a review
☑ Delivery Available

Yes, this item is available for delivery.

Metro: Arrives in 2 - 5 business days after dispatch.
Regional: Arrives in 3 - 10 business days after dispatch.

Please Note: Due to public holidays, deliveries may take additional time from estimates displayed above.

Time frames shown are subject to change, cut-off times are based off of AEST.

  • BFT E5 BT A18 Low Voltage Electromechanical Swing Gate Opener



    Features:

    • Installs To Pillars Or Columns
    • For Pedestrian Gates Up To 220 lbs
    • For Pedestrian Gates Up To 5 ft Wide
    • Ideal For Multi-Resident And Commercial Sites
    • Push & Go Function To Manually Open Gate Completely
    • Easy To Install Fixing Bracket For Columns And Pillars
    • Compact, Reversible Electromechanical Swing Gate Opener
     U-Link Connectivity Platform Compatible Using THALIA Control Unit
    • Absolute Encoder Recognizes Position To Manage Slow Down At All Times
    • THALIA Unit Has Standard Color Terminal Blocks For Output/Input For Quick Assembly
    • D-Track Path Tracking Includes Smart Torque Management, Constant Updating For Accuracy
    • Safety Enhancements Include Ability To Set Gate Automatic Closing After Opening And Remote Opening
    • 4.5-6.5s Opening Speed (90 Degrees Manoeuver Including Slowdown) Based On Weight/Dimensions Of The Leaf

    Specifications:

    • Control Unit: THALIA
    • Board Power Supply: 230V
    • Motor Voltage: 24V
    • Power Consumption: 40W
    • Max Width Of Door/Gate Wing: 1.8m (5 ft)
    • Cycle Time: 14s
    • Limit Switch: Absolute Encoder
    • Release Type: Reversible
    • Impact Reaction: D-Track
    • Frequency Of Use: Semi-Intensive
    • Degree Of Protection: IP44
    • Interconnectivity: YES
    • Max Weight Of Door/Gate Wing: 100kg (220 lbs)
    • Average Opening Time: 4.5-6.5s
    • Model: E5 BT A18



    SKU P930027-00001
    Alternate Part Number 2601404
    Operator Type Actuator Arm
    Input Voltage 220/230/240 AC (60 Hz, 1 Phase), 230 AC (50 Hz, 1 Phase)
    Max Gate Weight 220 lbs
    Max Gate Length 6 ft
    Swing Gate Model E5
